“Counterfactual architecture” yields almost no results on Google (at least in German)….
…which is why I’m writing this post to change that: For the Never Built Göttingen blog, which focuses on unrealised buildings, I tried to enrich this what-if scenario with map material.
Based on OpenStreetMap (OSM), this is not that difficult in principle. With JOSM, you can simply download the desired map section and then start drawing. It is important to mark your own buildings with ‘upload=false’ for safety reasons to prevent accidental uploads.
However, at best, you will then have created a fork of the data in OSM XML format. If you prefer to continue working only with the difference to the real map in order to have future changes in the displayed map material, things get a little more complicated. One option is to use special tools for merging/conflating.
Another option, which focuses solely on meeting specific requirements, is outlined here:
Procedure

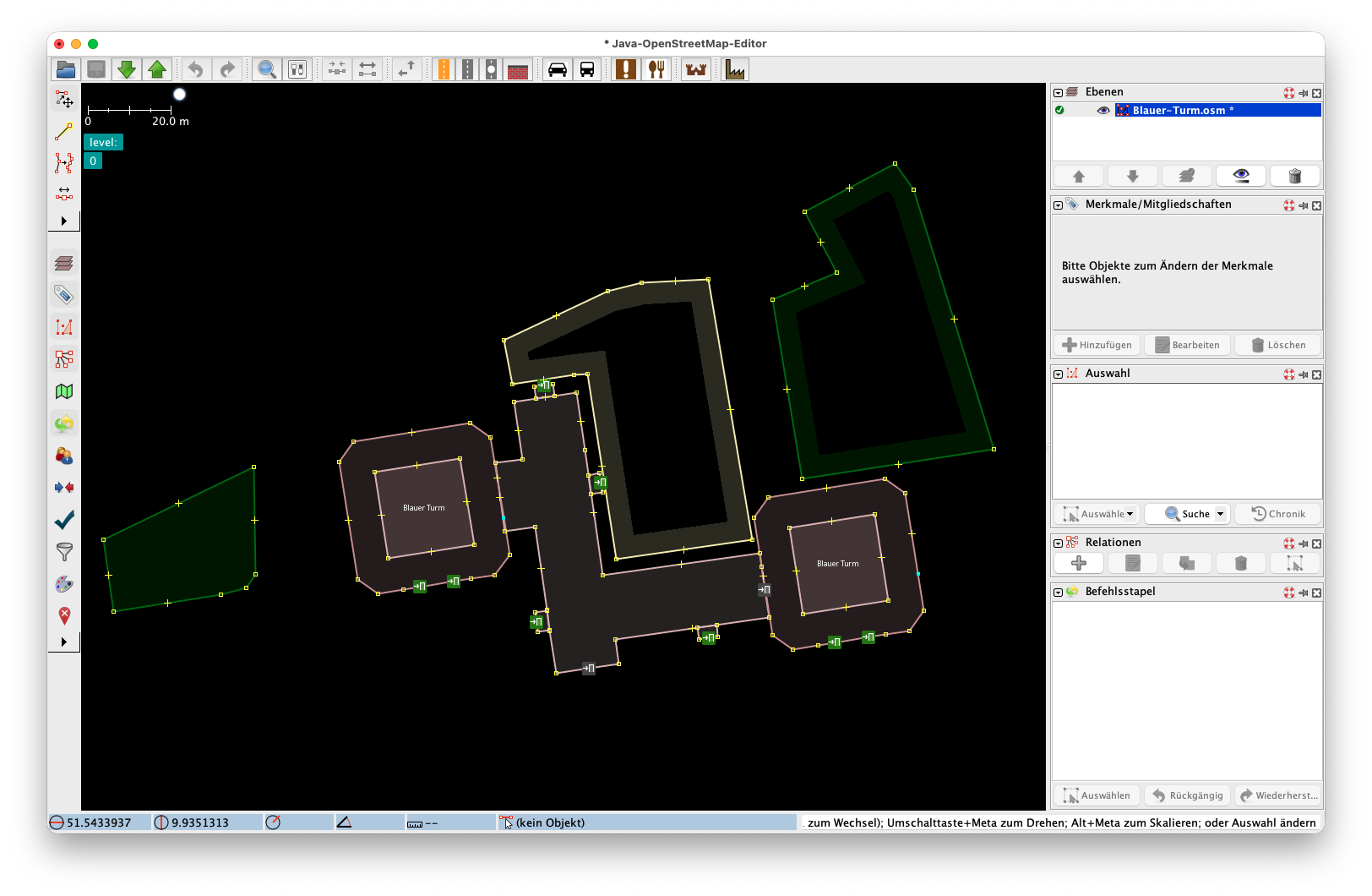

The prominent entry for the three blue towers serves as an example; it was quite easy to model in JOSM.
Extracting the changes
The first step is to isolate your own changes. You can use osmium for this, for example:
osmium tags-filter -o filtered.osm.xml w/upload=false input.osm.xml
Since the result was saved as XML, it can be opened again in JOSM:
Creating a mask
The next step is to create a kind of mask from the isolated changes, which can then be used to filter a larger area. This and the following steps were done with PyOsmium; for implementation, see below.
When creating the mask, the OSM IDs of the changes are also adjusted: These are negative up to this point, as they are not ‘real’, i.e. part of the central OSM database. However, various libraries or even Planetiler do not like it when they are negative, so they are simply multiplied by -1.
Cleaning up the input file
The mask can now be used to clean up an OSM data dump. The entire desired map section is scanned and any OSM way that intersects the mask is discarded. This allows existing buildings, green spaces, etc. to be removed.
Merging
The final step is to merge the cleaned-up area with your own changes.
Result
The next step is to convert the OSM PBF file into vector tiles using Planetiler.

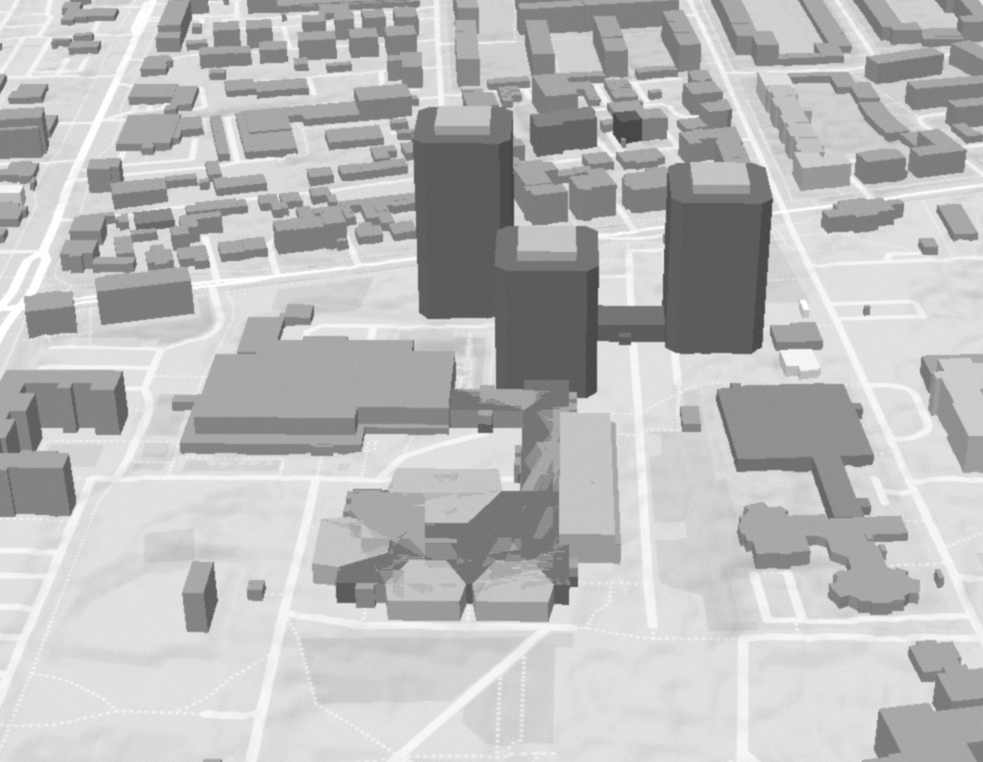

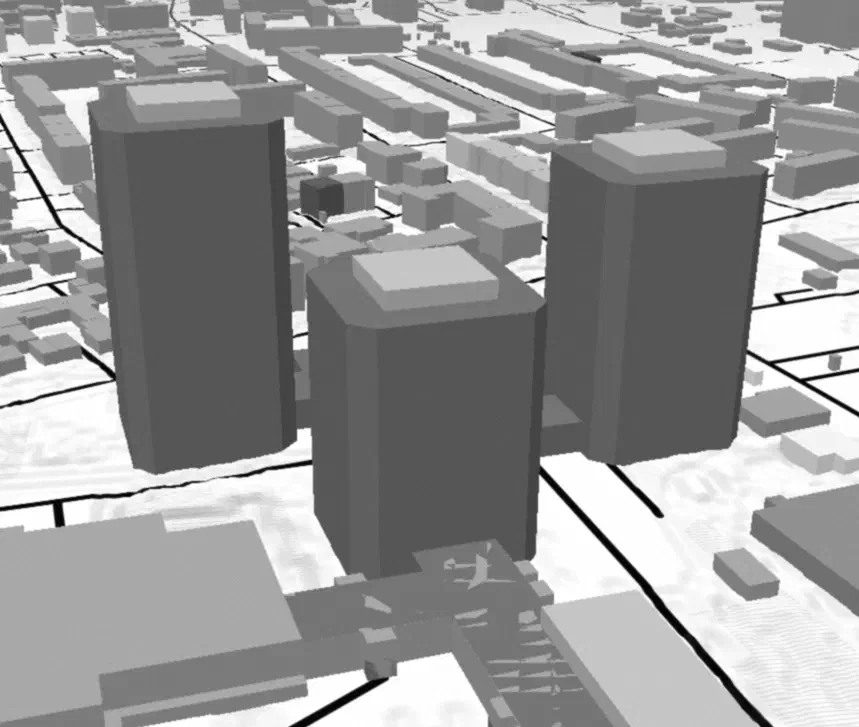

And this is what the generated map data looks like in a provisional Maplibre JS GL renderer:
Implementation
This Python function performs the steps above, the individual parameters:
base_file- The data dump of the entire areapatch- The cleaned-up changes created with JOSMoutput_file- The target fileoverwrite- Overwrite existing files (True|False)
def merge (base_file, patch, output_file, overwrite) -> None:
class IntersectionHandler(osmium.SimpleHandler):
"""
Handler to identify ways in an OSM file that intersect with a given set of polygons.
"""
def __init__(self, target_polygons):
super(IntersectionHandler, self).__init__()
self.target_polygons = target_polygons
self.wkbfactory = osmium.geom.WKBFactory()
self.intersecting_ways = []
#TODO: Check if we also need to remove nodes
def way(self, w):
if w.is_closed():
try:
wkb_line = self.wkbfactory.create_linestring(w)
shapely_line = shapely.from_wkb(wkb_line)
if len(shapely_line.coords) >= 4:
closed_way_polygon = Polygon(shapely_line)
for target_poly in self.target_polygons:
if closed_way_polygon.intersects(target_poly):
self.intersecting_ways.append({
'id': w.id,
'tags': dict(w.tags),
'geometry': closed_way_polygon
})
break
except osmium.geom.GeometryError as e:
logger.error(f"Could not create geometry for Way {w.id}: {e}")
class IDChanger(osmium.SimpleHandler):
"""
Handler to write OSM objects to a new file, changing their IDs to positive values.
"""
def __init__(self, writer):
super(IDChanger, self).__init__()
self.writer = writer
def node(self, n):
new_node = create_mutable_node(n)
new_node.id = n.id * -1
logger.debug(f"Changing node ID from {n.id} to {new_node.id}")
self.writer.add_node(new_node)
def way(self, w):
new_way = create_mutable_way(w)
new_way.id = w.id * -1
new_way.nodes = None
refs = []
for r in w.nodes:
r.ref = r.ref * -1
refs.append(r)
new_way.nodes = refs
logger.debug(f"Changing way ID from {w.id} to {new_way.id}")
self.writer.add_way(new_way)
def relation(self, r):
new_relation = create_mutable_relation(r)
new_relation.id = r.id * -1
logger.debug(f"Changing relation ID from {r.id} to {new_relation.id}")
self.writer.add_relation(new_relation)
class ExcludingIdFilter:
"""
A filter class for osmium.FileProcessor to exclude objects based on their IDs, see https://github.com/osmcode/pyosmium/issues/310
"""
def __init__(self, ids):
self.ids = ids
def node(self, n):
if n.id in self.ids:
return True
return False
def way(self, w):
if w.id in self.ids:
return True
return False
def relation(self, r):
if r.id in self.ids:
return True
return False
def area(self, a):
if a.id in self.ids:
return True
return False
logger.info("Generating mask and appying it to the input file.")
# Step 1: Process the patch file to change IDs to positive and extract polygons.
# This temporary file will hold the patch with inverted IDs.
with tempfile.NamedTemporaryFile(mode='w+t', delete=True, suffix=".pbf",) as temp:
with osmium.SimpleWriter(temp.name, overwrite=True) as writer:
handler = IDChanger(writer)
osmium.apply(patch, handler)
writer.close()
wkbfab = osmium.geom.WKBFactory()
polygons = []
# Read the transformed patch file to extract geometries for exclusion.
with open(temp.name, 'rb') as f:
patch_buffer = f.read()
patch_pbf = osmium.io.FileBuffer(patch_buffer, "pbf")
for o in osmium.FileProcessor(patch_pbf).with_areas():
logger.debug(f"Generating {o.type_str()} filter primitive for {o.type_str()}, id: {o.id}")
if o.is_way() and not o.is_closed():
wkb = shapely.from_wkb(wkbfab.create_linestring(o.nodes))
elif o.is_area():
logger.debug(f"Area: {o.__dict__}")
wkb = shapely.from_wkb(wkbfab.create_multipolygon(o))
else:
wkb = None
polygons.append(wkb)
# Filter out any None values from the polygons list (e.g., non-closed ways, nodes, relations)
polygons = [item for item in polygons if item is not None]
logger.info(f"Extracted {len(polygons)} polygons to use as filter.")
# Step 2: Identify ways in the base file that intersect with the extracted polygons.
handler = IntersectionHandler(polygons)
handler.apply_file(base_file, locations=True, idx='flex_mem')
results = handler.intersecting_ways
# Collect IDs of ways to be excluded from the base file.
ids = []
for i in results:
ids.append(i['id'])
logger.debug(ids)
# Step 3: Create a temporary base file with intersecting ways removed.
with tempfile.NamedTemporaryFile(mode='w+t', delete=True, suffix=".pbf") as temp:
with osmium.BackReferenceWriter(temp.name, base_file, overwrite=True) as writer:
for o in osmium.FileProcessor(base_file)\
.with_filter(osmium.filter.EntityFilter(osmium.osm.WAY))\
.with_filter(ExcludingIdFilter(ids)):
writer.add(o)
logger.info(f"Generated masked file. Applying patch. Overwrite: {overwrite}")
# Step 4: Merge the filtered base file with the transformed patch file.
with open(temp.name, 'rb') as f:
with osmium.SimpleWriter(output_file, overwrite=overwrite) as writer:
reader = osmium.MergeInputReader()
reader.add_buffer(patch_buffer, "pbf")
reader.add_buffer(f.read(), "pbf")
reader.apply(writer)
writer.close()
logger.info(f"Done, {output_file} written")
